GrowthXP Partogram

Total birth process visualisation

Printed reports from partograms traditionally consist of separate components, often in formats which are difficult to follow, especially for parents.  PC PAL’s new Partogram report :

  • consolidates the vital data held in the electronic health record to visualise the total birth process in four logical sections.
  • is ideal for immediate, postpartum conversations with parents, their future reference, and long-term archiving for medical follow up and  archiving compliance.



Product leaflet

GrowthXP Partogram

1 Overview

The overview page shows the data for mother and baby in a convenient, chronological order. The schematic timeline shows a selection of events from the specific charts. A notes section can include interventions and bedside observations.

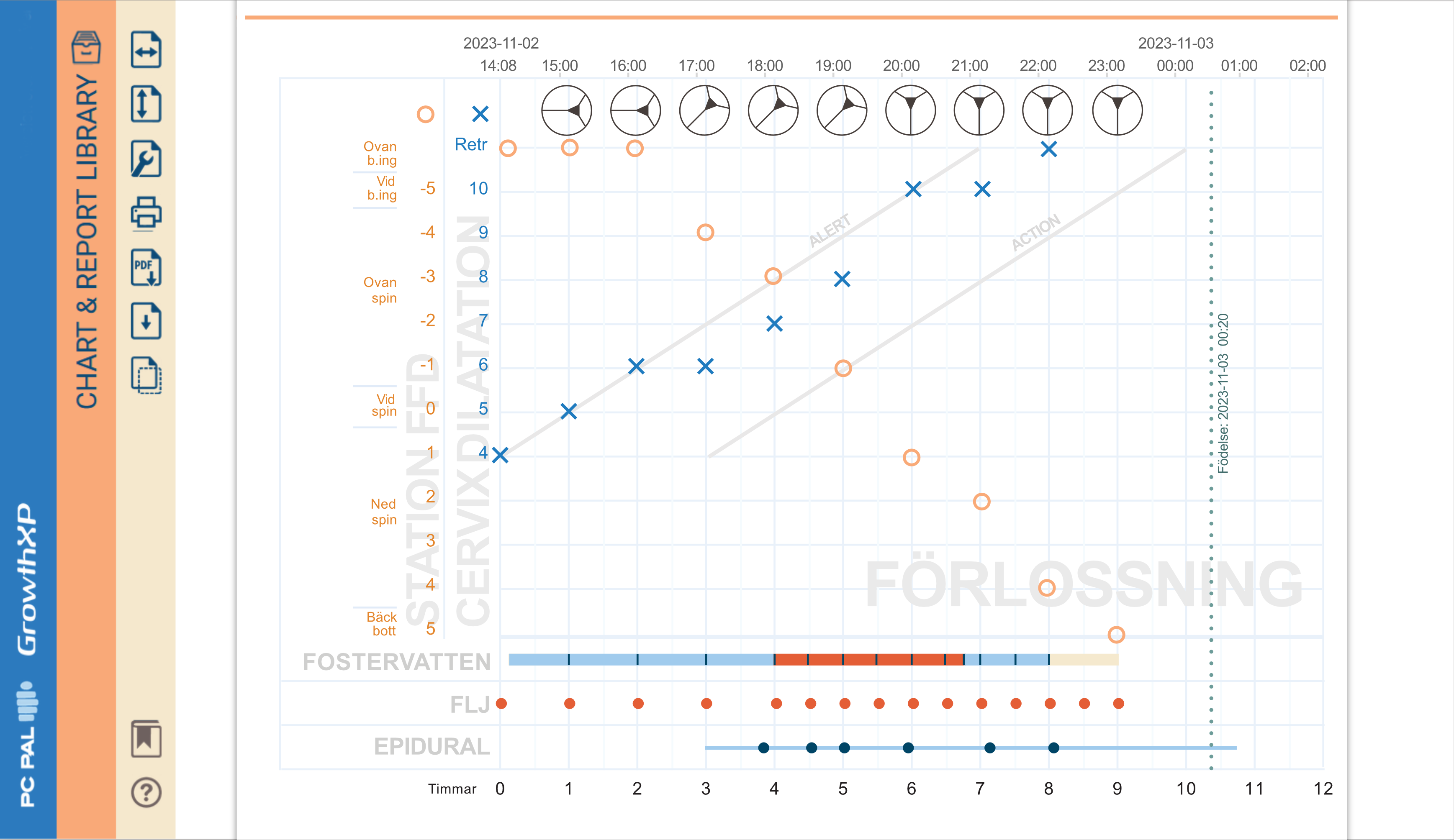

2 Active Labour

This most familiar section of a partogram shows:
⦁    Cervical dilation
⦁    Station FFD (quantitative and qualitative scales)
⦁    Fetal presentation
⦁    Scales for amniotic fluid, fetal heart rate, and epidural
If labour exceeds 12 hours, the graph continues on the next page and dynamically adapts for optimal visualisation and legibility. Below the graph, a table lists all data points shown in the graph and can continue into the next page as required.
Adjust settings to customise the partogram report to local guidelines (e.g. Alert and Action line gap)

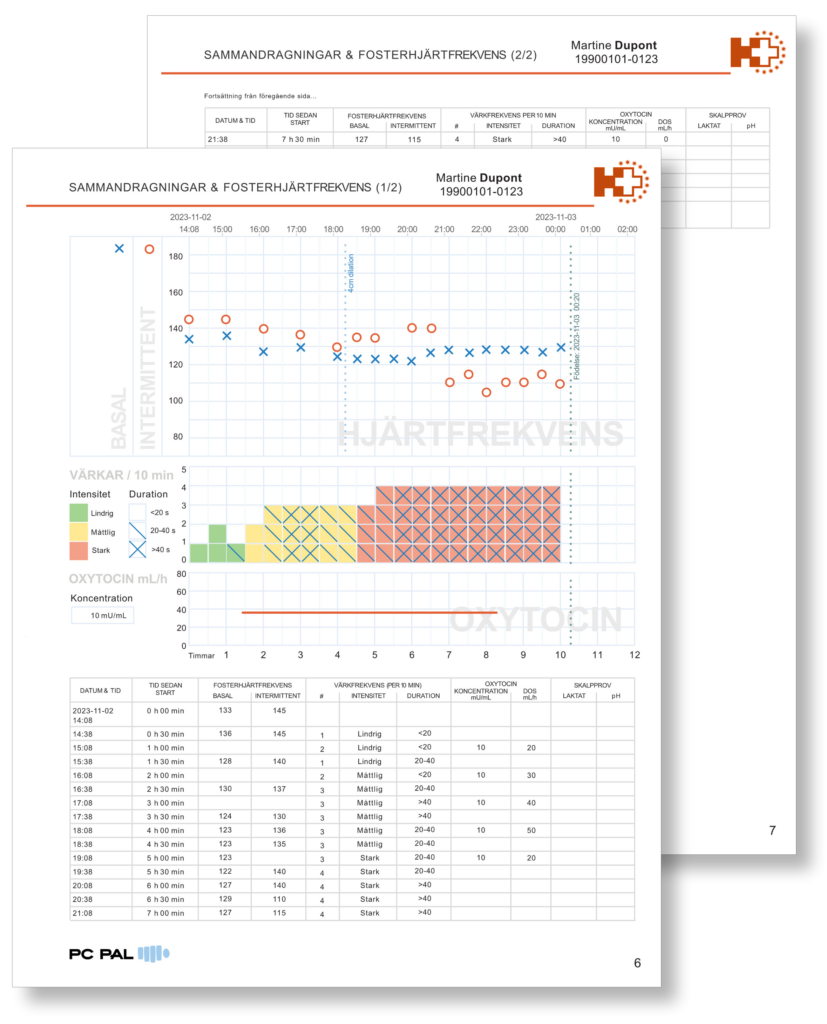

3 Contractions and fetal heart rate

This section documents fetal well-being and how it is affected by the mother.

Vertical major events lines (4cm dilation, birth)

Graphics are intuitive and easy to understand, with clear markings and symbols.

  •
  •

4 Maternal Vitals

This section documents the mother’s well-being:

  • Oxygen saturation
  • Respiratory rate
  • Temperature
  • Pulse
  • Blood pressure, systolic and diastolic

If additional information, more sections, and data tables are needed, they will be displayed under this section, providing space for 5 tables containing x number of data points.

PC PAL Partogram - Main Features

⦁    High-quality, high-resolution graphics with unparalleled detail, readability, and accuracy.
⦁    Detailed view of the labour process depicted across several different graphs.
⦁    An intuitive, interactive web-based user interface that is easy to use.
⦁    More than 130 discrete data fields and half of them with multiple occurrences.
⦁    A complete partogram record can easily consist of upwards of 1000 measurements.
⦁    Print preview mode providing the user with a complete and updated overview.
⦁    Responsive timeline visualising and documenting the sequence of events.
⦁    Audience-specific report designed to deliver a professional and clear experience when printed, to accommodate legal, professional, and parental perspectives.
⦁    Built upon the robust, high-performance platform GrowthXP.
⦁    14 Customised settings configurable at a client level


PC PAL Partogram - Customisable Settings

Settings are provided to ensure that each client can customise the partogram document printout to align with their care guidelines.

⦁    X cm dilation event threshold
⦁    Prolonged Rupture of Membranes duration threshold in hours
⦁    Default Hide/Display x cm dilation line on Labour Curve pages
⦁    Default Hide/Display x cm dilation line on Fetal Heart Rate and Contraction pages
⦁    Default Hide/Display x cm dilation line on Maternal Vitals pages
⦁    Show/Hide 0-3 scale labels for cervix dilation on Labour Curve pages
⦁    Alert and Action lines: customisable gap and labels
⦁    Enable/disable Alert and Action lines
⦁    Slope of Alert line for primiparous mothers
⦁    Slope of Alert line for multiparous mothers
⦁    Slope of Action line for primiparous mothers
⦁    Slope of Action line for multiparous mothers
